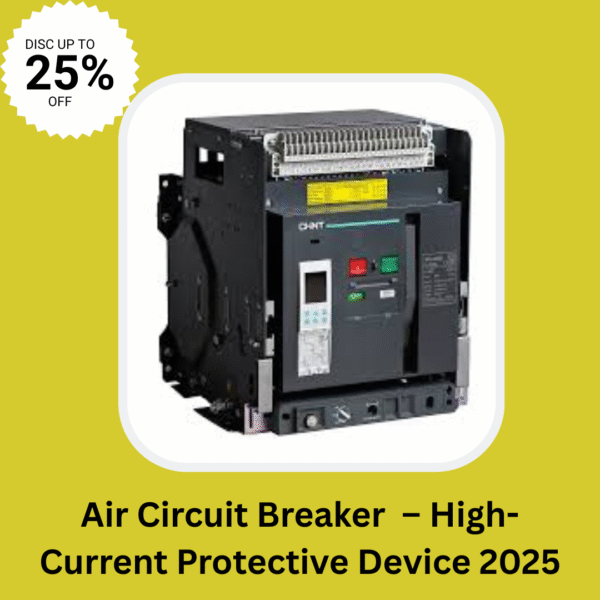

Air Circuit Breaker – High-Current Protective Device for Power Distribution

The Air Circuit Breaker (ACB) is a high-current protective device engineered for medium- to large-scale power distribution. Air Circuit Breaker automatically interrupts power in the event of overloads, short circuits, or faults, while offering precise current setting, fast tripping, and clear indication of status. Built for robust operation in switchgear and switchboards, the ACB provides both automatic protection and manual control, enabling safe commissioning, testing, and maintenance. Typical current ratings range from several hundred amperes to several thousand amperes, with various breaking capacities to suit grid, industrial, and commercial applications. Modern ACBs feature advanced arc quenching, adjustable trip characteristics, selective coordination, and reliable remote signaling options.

Key Features

• High-current interruption capability with fast, reliable tripping
• Adjustable long-time, short-time, and instantaneous trip settings
• Manual control for testing, commissioning, and isolation
• Arc quenching and fault-current handling for safe operation
• Optional remote signaling and communication interfaces (IEC 61850, Modbus, etc.)
• Universal mounting compatibility with standard switchgear
• High breaking capacity and solid mechanical integrity
• Certification and compliance per regional standards (IEC/UL/CSA as applicable)

Applications

• Medium- to high-power distribution boards and switchgear
• Industrial facilities, data centers, and large commercial installations
• Electrical substations and feeder configurations
• Systems requiring reliable protection with selective coordination

Benefits

• Protects conductors and equipment from damage due to faults
• Improves system reliability through fast, staged protection
• Facilitates maintenance with mechanical interlock and clear status indicators
• Supports coordination strategies to minimize downstream outages
